Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSEUC2520KKT4R7MWIRE-WOUND METAL POWER INDUCTORS |
1,450 |
|
Datasheet |
LSEU | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 1.8 A | 2.2A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSXBD5050YKL150MFIXED IND 15UH 1.8A 104 MOHM SMD |
1,438 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Shielded | 80mOhm | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
SDCH1V5040-471M-RIND 470 UH 0.33A SMT |
1,430 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 300 mA | 330mA | Shielded | 3.163Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.161" (4.10mm) |
|

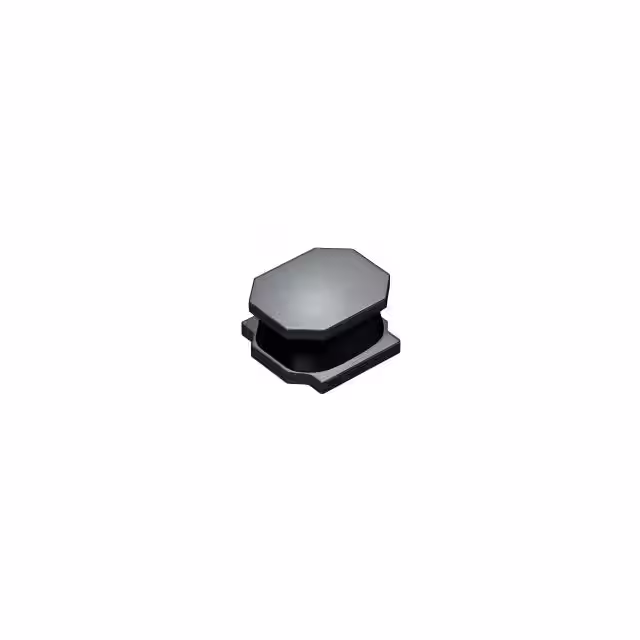

LSXBD5050YKL330MFIXED IND 33UH 1.2A 234 MOHM SMD |
1,310 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
ASPI-4030S-1R0N-TFIXED IND 1UH 4.15A 14 MOHM SMD |
1,301 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1 µH | ±30% | 4.15 A | 5.26A | Shielded | 14mOhm | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
AKPB002012103R3MA2INDUCTOR POWER |
22,472 |
|
Datasheet |
AKPx | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 800 mA | 300mA | Shielded | 240mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
-Top-MGV-Series.jpg)
|
MGV252012SR47M-10FIXED IND 470NH 5.8A 22MOHM SMD |
13,829 |
|
Datasheet |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.8 A | 6.8A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MGV252010S2R2M-10FIXED IND 2.2UH 2.4A 110MOHM SMD |
12,785 |
|
Datasheet |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.4 A | 3.3A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MGV252012S1R0M-10FIXED IND 1UH 3.9A 44 MOHM SMD |
11,706 |
|
Datasheet |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.9 A | 4.3A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
BWQV003225204R7K00INDUCTOR RF |
10,485 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 270 mA | - | Unshielded | 1.2Ohm Max | 20 @ 1MHz | 31MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQC003225161R0MH1INDUCTOR RF |
9,970 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.3 A | - | Unshielded | 45mOhm Max | - | 100MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
BWQV00322520561J00INDUCTOR RF |
9,740 |
|
Datasheet |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 40 mA | - | Unshielded | 28Ohm Max | 50 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

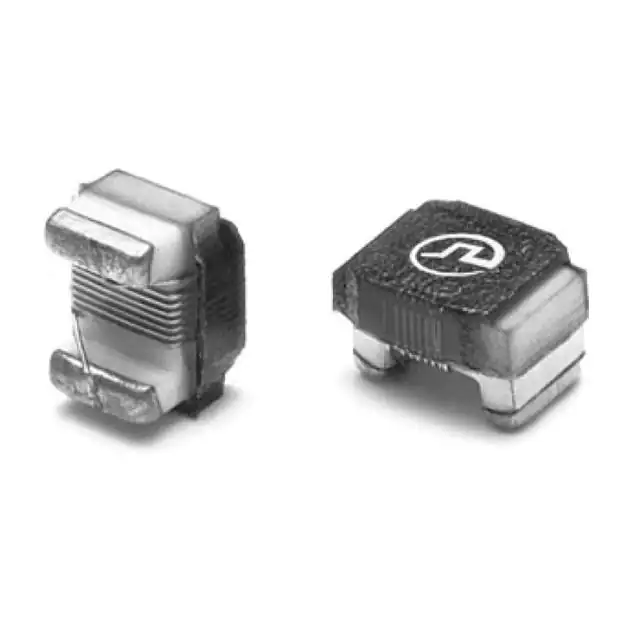

PE-0603CD6N8GTTINDUCTOR CERM RF WW 0603 6.8NH |
9,680 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±2% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
BWQC00322516100K00INDUCTOR RF |
9,465 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 350 mA | - | Unshielded | 300mOhm | - | 26MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
BWQC003225204R7ML1INDUCTOR RF |
9,044 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 650 mA | - | Unshielded | 150mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
BWVC004040184R7M00INDUCTOR POWER |
7,980 |
|
Datasheet |
BWVC | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.62 A | 1.8A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
BWQC003225202R2ML1INDUCTOR RF |
7,975 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | - | Unshielded | 97mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
BWQC003225164R7TH1INDUCTOR RF |
7,602 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1 A | - | Unshielded | 180mOhm Max | - | 40MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
TYS40184R7M-10FIXED IND 4.7UH 1.2A 90 MOHM SMD |
6,730 |
|
Datasheet |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.2 A | 1.7A | Shielded | 90mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
BWVS00404018330M00INDUCTOR POWER |
6,400 |
|
Datasheet |
BWVS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 630 mA | 720mA | Shielded | 530mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
-
