Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSEUC2520KKT2R2MWIRE-WOUND METAL POWER INDUCTORS |
6,000 |
|
Datasheet |
LSEU | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.5 A | 3A | Unshielded | 76mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
744761039AWE-KI SMT WIRE WOUND CERAMIC IND |
5,990 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 nH | ±0.2nH | 700 mA | - | Unshielded | 80mOhm Max | 22 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
ASPI-4020S-390M-TFIXED IND 39UH 460MA 650MOHM SMD |
5,955 |
|
Datasheet |
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 460 mA | 820mA | Shielded | 650mOhm | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
TFM160808BLD-R24MTCAIND 240NH 3.4A 33MOHM -40~125 |
5,130 |
|
Datasheet |
TFM-BLD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 240 nH | ±20% | 3.5 A | 3A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
744761156AWE-KI SMT WIRE WOUND CERAMIC IND |
5,020 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±5% | 600 mA | - | Unshielded | 310mOhm Max | 40 @ 200MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744761182AWE-KI SMT WIRE WOUND CERAMIC IND |
4,510 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm Max | 35 @ 150MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|

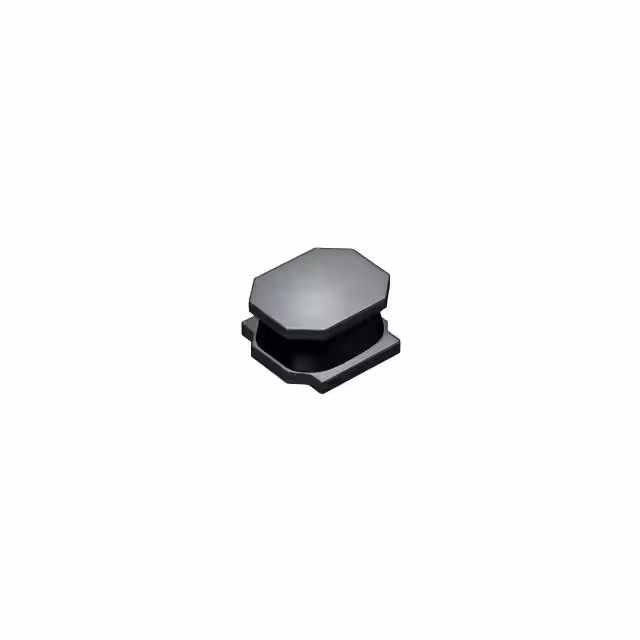

LSXBD5050YAL6R8MFIXED IND 6.8UH 2.3A 63.7MOHM SM |
4,500 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 2.6A | Shielded | 49mOhm | - | 21MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
744760210AWE-KI SMT WIRE WOUND CERAMIC IND |
4,000 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 100 nH | ±5% | 500 mA | - | Unshielded | 430mOhm Max | 60 @ 500MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
ASPI-4020S-510M-TFIXED IND 51UH 420MA 750MOHM SMD |
3,000 |
|
Datasheet |
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 51 µH | ±20% | 420 mA | 700mA | Shielded | 750mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
AMELA2010S-1R5MTFIXED IND 1.5UH 2.8A 70MOHM SMD |
3,000 |
|
Datasheet |
AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 2.8 A | 3A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
744761082AWE-KI SMT WIRE WOUND CERAMIC IND |
3,000 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | - | 4.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
LSXBD5050YAL3R3NFIXED IND 3.3UH 3.3A 35.1MOHM SM |
2,990 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±30% | 3.3 A | 3.8A | Shielded | 27mOhm | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LSXBD5050YAL100MFIXED IND 10UH 2.1A 72.8MOHM SMD |
2,990 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Shielded | 56mOhm | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
744761047AWE-KI SMT WIRE WOUND CERAMIC IND |
2,970 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 nH | ±0.2nH | 700 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744761212AWE-KI SMT WIRE WOUND CERAMIC IND |
2,950 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 35 @ 150MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744761133AWE-KI SMT WIRE WOUND CERAMIC IND |
2,845 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 43 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744761139AWE-KI SMT WIRE WOUND CERAMIC IND |
2,745 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 39 nH | ±5% | 600 mA | - | Unshielded | 250mOhm Max | 43 @ 250MHz | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744761147AWE-KI SMT WIRE WOUND CERAMIC IND |
2,728 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 280mOhm Max | 40 @ 200MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
SDCH1V5040-6R8M-RIND 6.8 UH 2.90A SMT |
2,697 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 2.8 A | 2.9A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.161" (4.10mm) |
|
|
AMELA2010S-2R2MTFIXED IND 2.2UH 2A 105 MOHM SMD |
2,525 |
|
Datasheet |
AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2 A | 2.6A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-
