Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82562N4222N000FIXED IND 2.2UH 4.1A 15 MOHM SMD |
7,500 |
|
Datasheet |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.1 A | 5A | Shielded | 15mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
B82562N4103M000FIXED IND 10UH 2.6A 35 MOHM SMD |
7,394 |
|
Datasheet |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 2.4A | Shielded | 35mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
B82562N4224M000FIXED IND 220UH 570MA 720MOHM SM |
7,303 |
|
Datasheet |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 570 mA | 520mA | Shielded | 720mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
BMME00040412R47MX2INDUCTOR POWER |
4,000 |
|
Datasheet |
BMME | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 8.5 A | 9.2A | Shielded | 18.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
B82562N4473M000FIXED IND 47UH 1.4A 130 MOHM SMD |
3,701 |
|
Datasheet |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.2A | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
L08052R7DEWTRFIXED IND 2.7NH 1A 80 MOHM SMD |
2,993 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.7 nH | ±0.5nH | 1 A | - | Unshielded | 80mOhm Max | 42 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
LCDND3030MKT1R0MMFIXED IND 1UH 3.9A 50 MOHM SMD |
1,990 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 3.3 A | 4.3A | Unshielded | 50mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74405031033FIXED IND 3.3UH 1.55A 155MOHM SM |
1,310 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.55 A | 2.6A | Shielded | 155mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
ECS-MPI2520R0-1R0-RFIXED IND 900NH 3.2A 60 MOHM SMD |
5,312 |
|
Datasheet |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 900 nH | ±20% | 3.2 A | 3.2A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRR0735A-391MFIXED IND 390UH 300MA 2.3OHM SMD |
2,890 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 300 mA | 300mA | Shielded | 2.3Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
SRU3028A-220YFIXED IND 22UH 600MA 335MOHM SMD |
2,400 |
|
Datasheet |
SRU3028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 600 mA | 620mA | Shielded | 335mOhm Max | 18 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
FCBA1-1210F-3R3JFIXED IND 3300NH 300MA 3.12 MOHM |
2,000 |
|
Datasheet |
FCBA1-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±5% | 300 mA | - | Shielded | 3.12Ohm Max | 20 @ 25MHz | 85MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.140" L x 0.115" W (3.56mm x 2.92mm) | 0.089" (2.25mm) |
|
|
FCBA1-1210F-4R7JFIXED IND 4700NH 280MA 4 MOHM |
2,000 |
|
Datasheet |
FCBA1-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | 280 mA | - | Shielded | 4Ohm Max | 16 @ 25MHz | 60MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.140" L x 0.115" W (3.56mm x 2.92mm) | 0.089" (2.25mm) |
|
|
FCBA1-1210F-2R2JFIXED IND 2200NH 310MA 2.41 MOHM |
2,000 |
|
Datasheet |
FCBA1-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±5% | 310 mA | - | Shielded | 2.41Ohm Max | 30 @ 50MHz | 110MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.140" L x 0.115" W (3.56mm x 2.92mm) | 0.089" (2.25mm) |
|
|
FCBA1-1210F-1R0JFIXED IND 1000NH 320MA 1.85 MOHM |
2,000 |
|
Datasheet |
FCBA1-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±5% | 320 mA | - | Shielded | 1.85Ohm Max | 45 @ 150MHz | 340MHz | - | -40°C ~ 125°C | 35 MHz | - | Surface Mount | 1210 | 0.140" L x 0.115" W (3.56mm x 2.92mm) | 0.089" (2.25mm) |
|

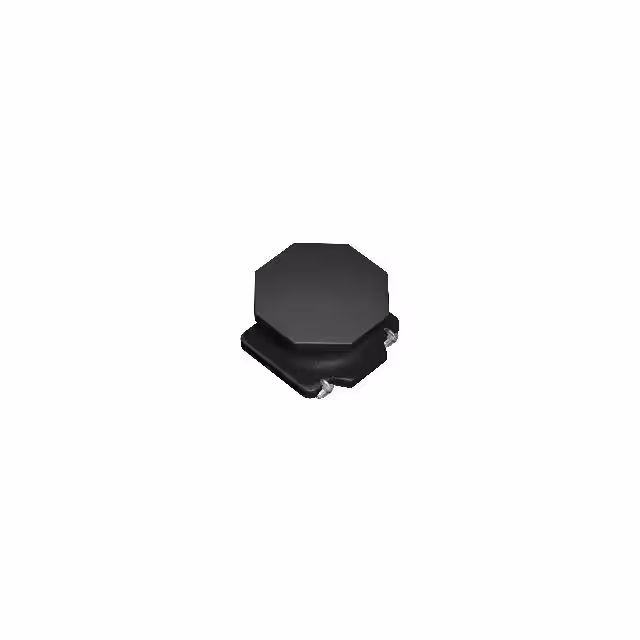

LCDND3030MKT3R3MMFIXED IND 3.3UH 1.9A 167MOHM SMD |
1,915 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.65 A | 2.1A | Unshielded | 173mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
74456322WE-PD4 SMT POWER INDUCTOR SIZE T |
1,200 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 mH | ±10% | 250 mA | 260mA | Unshielded | 8.2Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
74408053004WE-HEPC SMT SHIELDED TINY POWER |
5,817 |
|
Datasheet |
WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.4 A | 3.2A | Shielded | 100mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5030 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.116" (2.94mm) |
|
|
SRP4012CC-6R8MIND SMD 6.8UH 1.5A |
3,997 |
|
Datasheet |
SRP4012CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 1.5 A | 1.7A | Shielded | 360mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
SRP4012CC-1R5MIND SMD 1.5UH 3A |
3,987 |
|
Datasheet |
SRP4012CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 3 A | 4A | Shielded | 63.3mOhm Max | - | 62MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
-
