Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

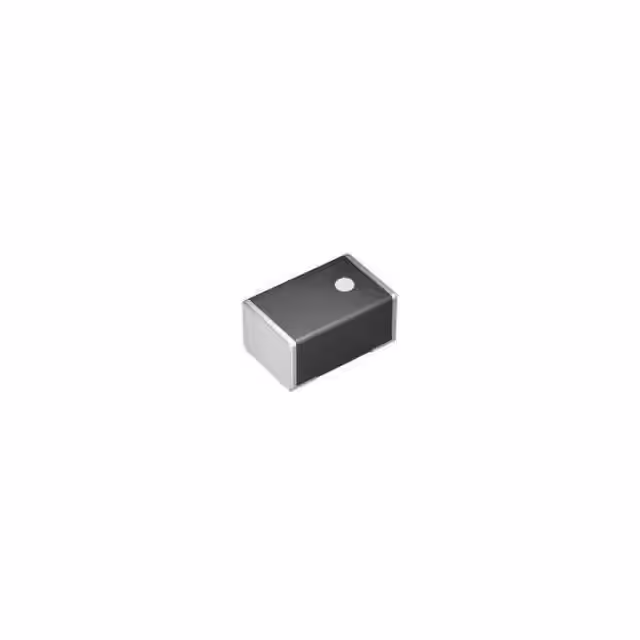

LSCNB1608HKTR24MDFIXED IND 240NH 3.7A 24MOHM SMD |
2,965 |
|
Datasheet |
LSCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 3.7 A | 4.3A | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
LSCNB1608HKTR47MDFIXED IND 470NH 2.7A 43MOHM SMD |
2,922 |
|
Datasheet |
LSCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 2.7 A | 3.3A | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
F1C1-201608-4R7MFIXED IND 4.7UH1.4A 290 MOHM |
2,913 |
|
Datasheet |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.4 A | 1.5A | Shielded | 290mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
HMLQ25201T-R33MSRIND SMD 0.33UH HOT PRESSED CHOKE |
2,900 |
|
Datasheet |
HMLQ25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 5 A | 7A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SRN2010BTA-2R2MFIXED IND 2.2UH 2.1A 0.168OHM SM |
2,786 |
|
Datasheet |
SRN2010BTA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | 1.3A | Shielded | 168mOhm Max | 10 @ 1MHz | 76MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRN2010BTA-1R0MFIXED IND 1UH 3.1A 0.0804OHM SMD |
2,720 |
|
Datasheet |
SRN2010BTA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 2A | Shielded | 80.4mOhm Max | 10 @ 1MHz | 130MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
F1C1-252010-3R3MFIXED IND 3.3 UH 2.1A 100 MOHM |
2,713 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 2.1 A | 2.5A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SRN2010BTA-3R3MFIXED IND 3.3UH 1.7A 0.252OHM SM |
2,615 |
|
Datasheet |
SRN2010BTA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 1.1A | Shielded | 252mOhm Max | 10 @ 1MHz | 64MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRN2010BTA-8R2MFIXED IND 8.2UH 800MA 0.756OHM |
2,610 |
|
Datasheet |
SRN2010BTA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 800 mA | 700mA | Shielded | 756mOhm Max | 10 @ 1MHz | 33MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSDND2020JET6R8MMFIXED IND 6.8UH 850MA 630MOHM SM |
2,500 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 750 mA | 800mA | Shielded | 630mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.037" (0.95mm) |
|

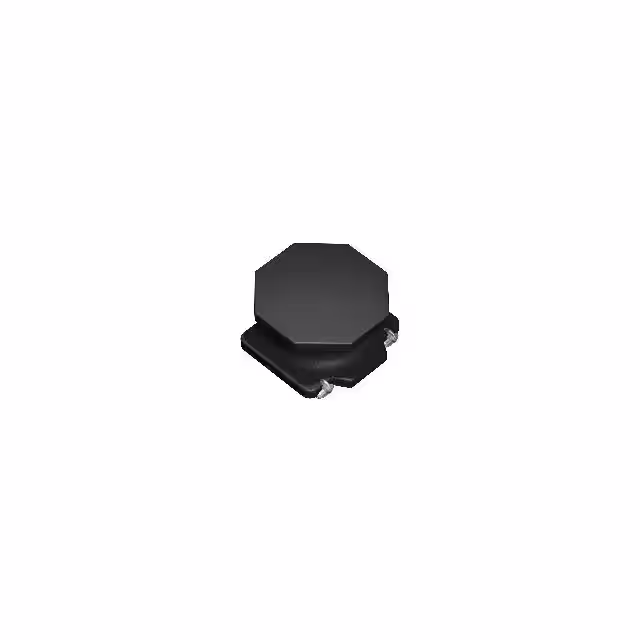

LSDND2020MKT3R3MMFIXED IND 3.3UH 1.15A 178MOHM SM |
2,500 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.15 A | 1.35A | Shielded | 178mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|

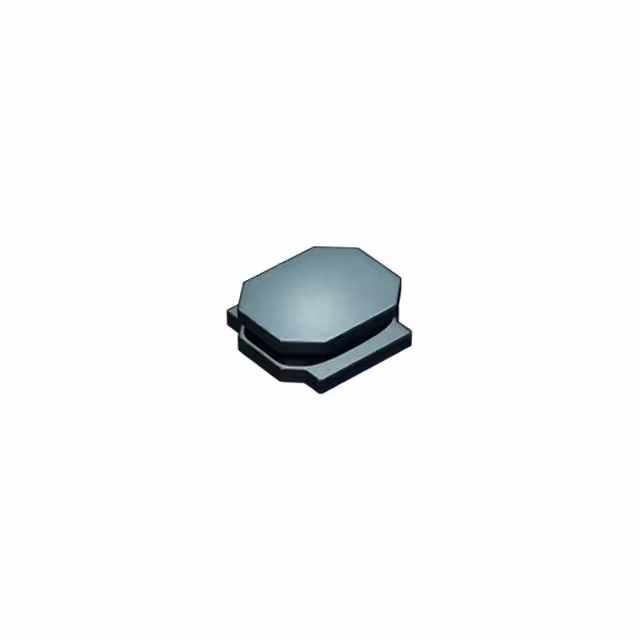

LSXND6060WKL3R3NMGFIXED IND 3.3UH 2.75A 48MOHM SMD |
2,467 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 2.75 A | 2.8A | Shielded | 48mOhm Max | - | 55MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
SRN2010BTA-5R6MFIXED IND 5.6UH 1.1A 0.498OHM SM |
2,225 |
|
Datasheet |
SRN2010BTA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.1 A | 850mA | Shielded | 498mOhm Max | 10 @ 1MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LCXND4040TKL100MDGFIXED IND 10UH 1.2A 180 MOHM SMD |
2,090 |
|
Datasheet |
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.3A | Unshielded | 150mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SDCL1V4030-3R3M-RIND 3.3 UH 3.9A SMT |
2,000 |
|
Datasheet |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 2.4 A | 3.9A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
HMLQ25201B-R33MSRIND SMD 0.33UH HOT PRESSED CHOKE |
2,000 |
|
Datasheet |
HMLQ25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 5.7 A | 6.8A | Unshielded | 17mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
HMLQ25201B-R68MSRIND SMD 0.68UH HOT PRESSED CHOKE |
2,000 |
|
Datasheet |
HMLQ25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 4 A | 4.6A | Unshielded | 32mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
HMLQ25201B-3R3MSRIND SMD 3.3UH HOT PRESSED CHOKE |
2,000 |
|
Datasheet |
HMLQ25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 1.55 A | 1.95A | Unshielded | 144mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQH3NPN560MMELFIXED IND 56UH 350MA 1212 |
1,990 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 500 mA | 350mA | Shielded | 1Ohm | - | 5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

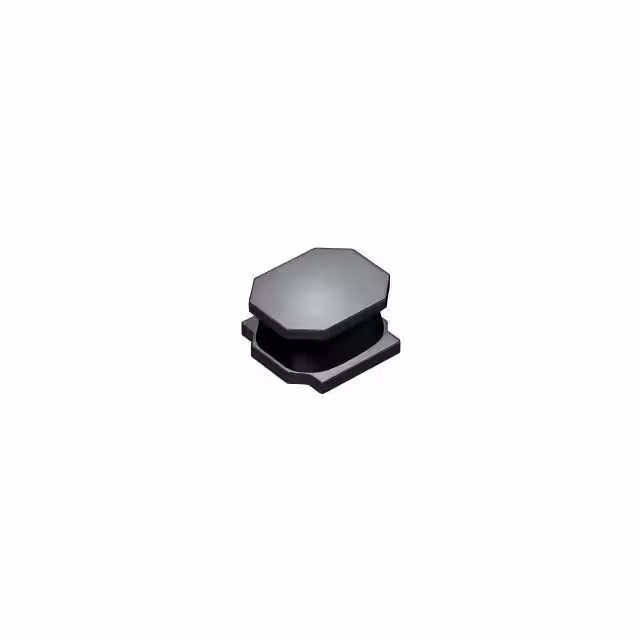

LCXND6060WHL100MMGFIXED IND 10UH 1.9A 84.5MOHM SMD |
1,950 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 1.9A | Unshielded | 65mOhm | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
-
