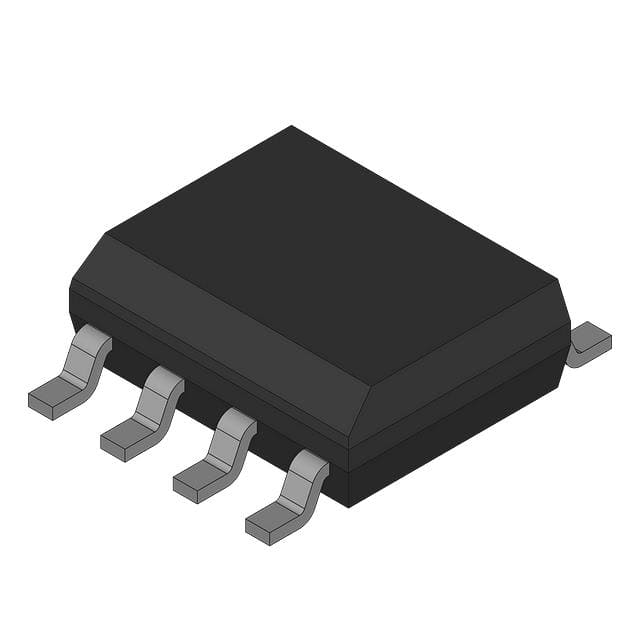

The LM392M/NOPB, a product by Texas Instruments, is a versatile dual - voltage comparator designed to meet the needs of various electronic applications. It combines high - precision signal comparison capabilities with power - efficient operation.
1. Key Features
Dual Comparator Configuration
The LM392M/NOPB houses two independent voltage comparators in a single package. This dual - comparator setup allows for simultaneous comparison of multiple input signals, reducing component count and board space in circuit designs. For example, in a battery - powered multi - sensor system, each comparator can be used to monitor different sensor outputs, enabling efficient decision - making based on the comparison results.
Precision Performance
It offers high - precision voltage comparison with a typical input offset voltage of only 2 mV. This low offset voltage ensures accurate discrimination between input signals, making it suitable for applications where precise signal evaluation is crucial. In measurement and control systems, the LM392M/NOPB can accurately detect small changes in sensor signals, facilitating precise control actions.
Low Power Consumption
Designed for power - conscious applications, the LM392M/NOPB consumes a relatively low quiescent current of about 1.4 mA per comparator. This makes it an excellent choice for battery - operated devices, such as portable medical monitors or wireless sensors, where minimizing power consumption is essential to extend battery life.
Wide Supply Voltage Range
The device operates over a wide supply voltage range from 2 V to 36 V. This flexibility allows it to be used in a variety of power supply scenarios, from low - voltage battery - powered circuits to high - voltage industrial systems. Whether it's a 3 - V coin - cell battery or a 24 - V industrial power supply, the LM392M/NOPB can adapt and function effectively.
High Slew Rate
With a high slew rate of 1.5 V/µs, the LM392M/NOPB can quickly respond to changes in input signals. This is beneficial in applications where rapid signal transitions need to be detected, such as in high - speed digital communication systems or pulse - width - modulation (PWM) control circuits.
2. Working Principle
Each comparator within the LM392M/NOPB has two input terminals, usually labeled as the non - inverting input (+) and the inverting input (-), and an output terminal. When the voltage at the non - inverting input is higher than the voltage at the inverting input, the output of the comparator goes high. Conversely, when the voltage at the inverting input is higher, the output goes low.
The internal circuitry of the comparator is designed to accurately compare the input voltages and generate a corresponding digital - level output. The high - precision design ensures that even small differences in input voltages can be detected and correctly translated into the appropriate output state.
3. Application Areas
Power Management
In power management circuits, the LM392M/NOPB can be used to monitor and control the voltage levels. For instance, it can compare the output voltage of a power supply with a reference voltage to detect over - voltage or under - voltage conditions. Based on the comparison result, it can trigger protection circuits or adjust the power supply output to maintain a stable voltage.
Sensor Interfaces
In sensor - based applications, the LM392M/NOPB can be used to interface sensors with microcontrollers or other control units. It can compare the sensor output voltage with a predefined threshold voltage. For example, in a temperature - sensing system, the comparator can detect when the temperature sensor output exceeds a certain limit, indicating a potentially dangerous temperature condition.
Audio Circuits
In audio applications, the LM392M/NOPB can be used for functions such as audio level detection. It can compare the audio signal amplitude with a reference level to determine if the audio is too loud or too soft. This information can then be used to adjust the volume or trigger other audio - related processing, such as automatic gain control.
Industrial Control
In industrial control systems, the LM392M/NOPB can be used to compare signals from various industrial sensors, such as pressure sensors, flow sensors, or position sensors. The comparison results can be used to control industrial processes, such as starting or stopping a motor, opening or closing a valve, based on the sensor readings.
